Shore-Flex™ 300 Series

flex-300

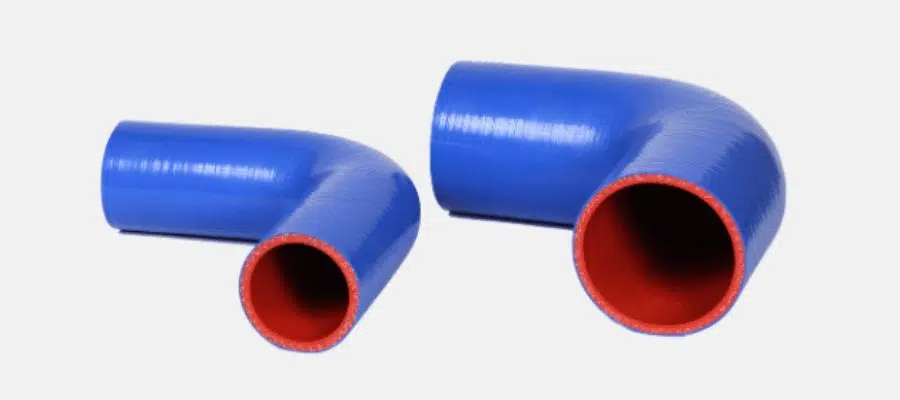

Shore-Flex™ 300 Series Shaped Coolant Hose 90 Degree Elbow (Silicone – Glossy)

  • Wall thickness: see Table
  • Excellent ozone and Weather resistance
  • Silicone Hoses COMPLIES with Fire Specification UL94HB
  • Working pressure is approximately 1/3rd of the burst pressure
  • Suitable for extremely harsh temperatures: -56 to +180 °C (-68.8 to +356°F)
  • Electro-chemical resistant
  • “Heavy wall” option for higher-pressure resistance, available on request
  • Use in a variety of sectors including heavy-duty automotive, industrial, farming, mining and construction, amongst others

Coolant Hose with Multiple Layers of Polyester
Heavy-duty standard wall

Would you like to start a project with us?

Contact Us
Sr.
no.		 Part No. Hose ID Arm Length Wall Thickness Outer Diameter Burst Pressure (MPA) Burst Pressure (PSI)
mm in mm in mm in mm in Spec Actual Spec Actual
1 300-039-060 10 0.39 152.4 6 4.95 0.19 19.90 0.78 3.29 3.80 477 551
2 300-050-060 13 0.50 152.4 6 4.95 0.19 22.90 0.90 2.93 3.00 425 435
3 300-063-060 16 0.63 152.4 6 4.95 0.19 25.90 1.02 2.59 3.11 376 451
4 300-075-060 19 0.75 152.4 6 4.95 0.19 28.90 1.14 2.24 2.64 325 383
5 300-087-060 22 0.87 152.4 6 4.95 0.19 31.90 1.26 2.24 2.35 325 340
6 300-100-060 25 1.00 152.4 6 4.95 0.19 34.90 1.37 2.06 2.26 299 327
7 300-114-060 29 1.14 152.4 6 4.95 0.19 38.90 1.53 2.06 2.10 299 305
8 300-125-060 32 1.25 152.4 6 4.95 0.19 41.90 1.65 1.90 2.00 276 290
9 300-138-060 35 1.38 152.4 6 4.95 0.19 44.90 1.77 1.90 1.98 276 287
10 300-150-060 38 1.50 152.4 6 4.95 0.19 47.90 1.89 1.72 1.94 249 281
11 300-161-060 41 1.61 152.4 6 4.95 0.19 50.90 2.00 1.72 1.92 249 278
12 300-175-060 44 1.75 152.4 6 4.95 0.19 53.90 2.12 1.55 1.89 225 274
13 300-200-060 51 2.00 152.4 6 4.95 0.22 60.90 2.40 1.38 1.60 200 200
14 300-225-060 57 2.25 152.4 6 4.95 0.19 66.90 2.63 1.21 1.28 175 186
15 300-236-060 60 2.36 152.4 6 4.95 0.19 69.90 2.75 1.21 1.24 175 180
16 300-250-060 64 2.50 152.4 6 4.95 0.19 73.90 2.91 1.03 1.17 149 169
17 300-275-070 70 2.75 177.8 7 4.95 0.19 79.90 3.15 0.86 1.10 125 160
18 300-300-075 76 3.00 190.5 7.5 4.95 0.19 85.90 3.38 0.60 1.08 87 157
19 300-325-075 83 3.25 190.5 7.5 4.95 0.19 92.90 3.66 0.60 0.93 87 135
20 300-350-085 89 3.50 215.9 8.5 4.95 0.19 98.90 3.89 0.52 0.90 75 100
21 300-400-095 102 4.00 241.3 9.5 5.50 0.22 113.00 4.45 0.34 0.61 49 88
22 300-500-095 127 5.00 241.3 9.5 5.50 0.22 138.00 5.43 0.34 0.52 49 75

Note: Not suitable for OAT coolants that have very high pH levels or Coolants that contain ethyl-hexanoic acids.
